3mm Chip Ceramic Trimmer Capacitor
View: 10306 times
 Click Here to Download PDF
    Product Description

Ceramic Trimmer Capacitors 3mm SMD Type
Ceramic Trimmer Capacitors 3mm SMD Type
Featrure:
Very compact package type. For reflow soldering use.
Preserved from solvent. Dust-Proof structure.
Low capacitance drift. Optimum for automatic chip mounter du
their small allowance in the dimensions and no air leakage.
Maximum capacitance can be checked by triangle-cut of rotor.
Operating temperature range: -25¡æ ∼+85¡æ
Rated working voltage: 3pF to 6pF: 50V DC  10pF to 30pF: 110V DC
Dielectric withstanding voltage: 3pF to 6pF: 110V DC 10pF to 30pF: 220V DC
Insulation resistance: 10•M¦¸min.  Rotation torque: 10~70g.cm

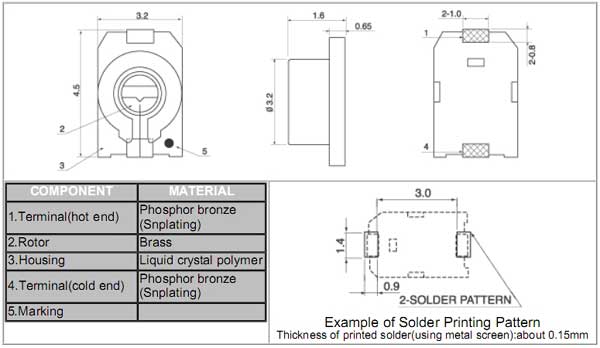

Ceramic Trimmer Capacitor 3mm SMD type Dimensions:

Ceramic Trimmer Capacitors 3mm SMD Type Vatronics How to order:
VCT 3 030
   1      2   3
1.VCT Stands for Ceramic Trimmer Capacitors
2.Outer diameter of ceramic dielectric
3. Maximum nonimal capacitance

Ceramic Trimmer Capacitors 3mm SMD Type
