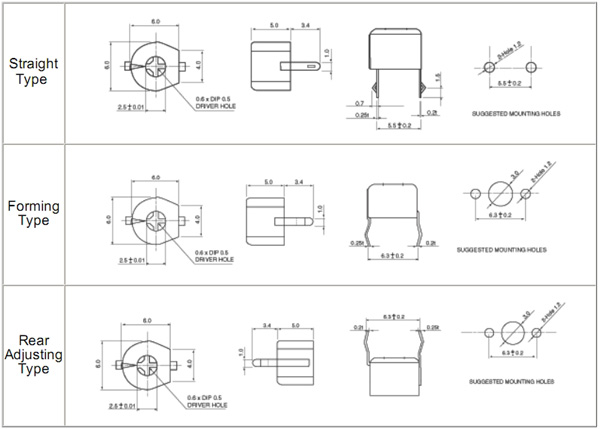

Ceramic Trimmer Capacitors 6mm Featrure: Flame retardant plastic color case identifying maximum nominal capacitance. Excellent shock resistance. Very easy to adjust. Operating temperature range: -25¡æ-+85¡æ Rated working voltage: 100V DC Dielectric withstanding voltage: 220V DC Insulation Resistance: 10M¦¸min. Rotation torque: 20~150g.cm Dimensions: Vatronics How to order: VCT 6 S 030 1 2 3 4 1. VCT Stands for Ceramic Trimmer Capacitors 2.Outer diameter of ceramic dielectric 3. Type : S-Straight, F-Forming, R-Rear 4. Maximum nonimal capacitance
