MF58 HIGH PRECISION THERMISTOR

MF58 HIGH PRECISION THERMISTOR Introduction:
Combines ceramic technology and semiconductor technology; axial
lead on both ends; and glass encapsulation.
MF58 HIGH PRECISION THERMISTOR Applications:
1Temperature control and check of household appliances such as
air conditioner, microwave oven, electric fan, electric oven and more.
2Tempeature check or temperature compensation of office auto
equipment such as copying machine, printing machine and more.
3Temperature control and check of industrial, medical, environmental protection, meteorologic and food
processing equipments.
4Liquid level indication and flux measurement.
5Mobile cells.
6Temperature compensation of instrument coil, IC, quartz crystal oscillator and thermocouple.
MF58 HIGH PRECISION THERMISTOR Features:
1Good stability and high reliability.
2Wide resistance range: 0.1-1000K.
3Precision resistance.
4Glass encapsulation, suitable for high temperature severe-service applications.
5Small size, light weight, firm structure, and convenient for auto mounting (in PCBs).
6Quick response and high sensibility.
MF58 HIGH PRECISION THERMISTOR Main Technical Parameters:
1Rated zero-power resistance range: (R25):0.1~1000K
2R25 allowable tolerance: ±1%?±2%,±3%, ±5%, ±10%.
3B value range: (B25/50?):1960~4480K
4B value allowable tolerance: ±0.5%,±1%,±2%.
5Dissipation coefficient: 2mW/? (in still air)
6Thermal time constant: 20S (in still air)
7Operating temperature range:  -55?~ +300?
8Rated power: ≤50Mw
MF58 HIGH PRECISION THERMISTOR Vatronics Part Number System:

Glass encapsulated thermistor  - ZAxial lead type JRadial lead type Resistance: 103----10K? 502---5K
Resistance tolerance: F?±1% G?±2% H?±3% J?±5% K?±10% ° L?B25/50 H?B25/85 T?Special temperature range
± B value: 347----3470 338----3380 (First three digits are significant.)

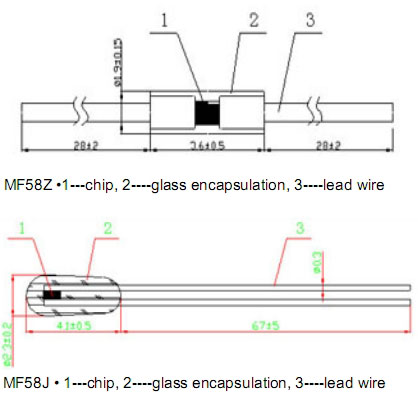

MF58 HIGH PRECISION THERMISTOR Dimensions:

MF58 HIGH PRECISION THERMISTOR

MF58Z Common Type Resistance-Temperature Contrast: (Unit:KW)
Vatronics MF58J High-Temperature Resistance Type Resistance-Temperature Characteristics:

MF58 HIGH PRECISION THERMISTOR
