3362 6mm Square Single-Turn Trimmer Potentiometers|Trimmer Potentiometer|potenciometr, trimr potenciometry, trimmer potentiometer, trimmer potentiometre, potentsiomeeter
3362 6mm Square Single-Turn Trimmer Potentiometers
View: 19272 times
 Click Here to Download PDF
    Product Description

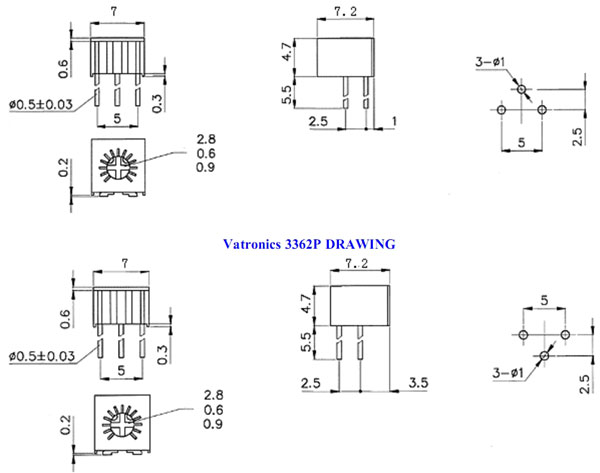

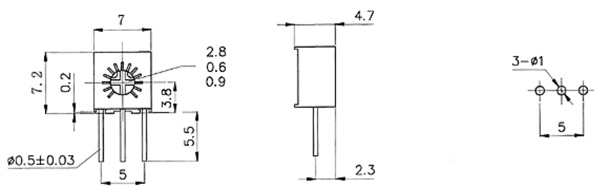

3362 6mm Square Single-Turn Trimmer Potentiometers Vatronics makes 3362M,3362P,3362R,3362U,3362W,3362X,
Electrical•Characteristics
Range•of•resistance: 10Ω—2MΩ•Resistance•tolerance: ±10%
Terminal•resistance ≤2Ω•or•1%R   Contact•resistance•variation:
CRV≤3%R•or•3Ω Insulation•resistance Re≥1GΩ
Withstand•voltage -500Vdc
Effective•electrical•travel:•210+/-10°•power:  0.5W•70•)
Vatronics Temperature range: -55•~+125•
TCR: ±100ppm/•;Collision 390m/s²•4000cycles  Vibration 10-2000Hz
0.75mm, 6h ∆R≤+/-(3%R+0.1Ω)
Load life at 70• 0.5W, 1000H ∆R≤+/-(3%R+0.1Ω)
Mechanical•endurance
200•cycles ∆R≤3%R•CRV≤3%R  Starting•torque  ≤36 mNm
3362 6mm Square Single-Turn Trimmer Potentiometers Vatronics Mark: Resistance code, resistance
•tolerance(±10% no indication), lot No.
Standard•package 50pcs/tube

3362 6mm Square Single-Turn Trimmer Potentiometers
